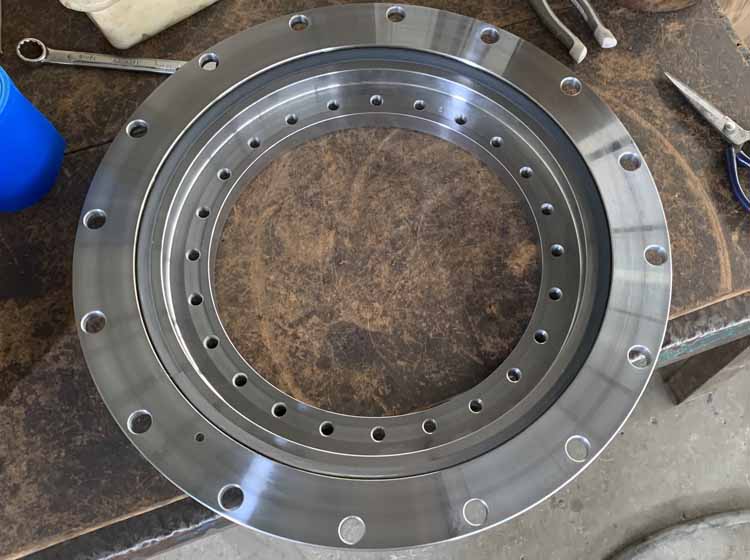

Equivalent to Manufacturer    ROTHE ERDE

System of Measurement    Metric

Gear    Without gear

Type    Ball

Bearing Type    Flanged

Product Type    Slewing Beraing

Inside Diameter Of Inner Ring    304 mm

Outside Diameter Of Outer Ring    518 mm

Internal Diameter On Inner Ring    375 mm

Internal Diameter On Outer Ring    415.5 mm

External Diameter On Inner Ring    412.5 mm

Height Of Overall Bearing Assembly    56 mm

Bolt Circle In Inner Ring    332 mm

Bolt Circle In Outer Ring    490 mm

Size Holes In Inner Ring    18 mm

Size Holes In Outer Ring    18 mm

Correspond    FIG5

Ring Material     50MN

Ball Materrial    52100 Chrome Steel

Cage Material    Nylon 1010

Seal Material    NBR

RoHS    Compliant

Weight    23.4 Kg

Diameter Of Bearing Raceway    414 mm

Distance Between Bottom Outer Ring/Inner Ring    10.5 mm

Distance at top Outer Ring/Inner Ring    10.5 mm

Number Of Grease Nipples    4

Additionally, please contact us if you require the following  slewing bearing models.

23 0411 01

23 0541 01

23 0641 01

23 0741 01

23 0841 01

23 0941 01

23 1091 01

NBL.20.0314.200-1PPN

NBL.20.0414.200-1PPN

NBL.20.0544.200-1PPN

NBL.20.0644.200-1PPN

NBL.20.0744.200-1PPN

NBL.20.0844.200-1PPN

NBL.20.0944.200-1PPN

NBL.20.1094.200-1PPN

NBL.20.0314.201-2PPN

NBL.20.0414.201-2PPN

NBL.20.0544.201-2PPN

NBL.20.0644.201-2PPN

NBL.20.0744.201-2PPN

NBL.20.0844.201-2PPN

NBL.20.0944.201-2PPN

NBL.20.1094.201-2PPN

NBL.30.0955.200-1PPN

NBL.30.1055.200-1PPN

NBL.30.1155.200-1PPN

NBL.30.1255.200-1PPN

NBL.30.1355.200-1PPN

NBL.30.1455.200-1PPN

NBL.30.0955.201-2PPN

NBL.30.1055.201-2PPN

NBL.30.1155.201-2PPN

NBL.30.1255.201-2PPN

NBL.30.1355.201-2PPN

NBL.30.1455.201-2PPN
